Audio Quality Testing:
VoIP/SIP and mobile calls using POLQA (Basic Setup)

Goal: Evaluate the voice/speech audio quality made between VoIP-SIP and mobile calls through POLQA scoring server where both the endpoints are located on the same LANforge system.


Consider an example:

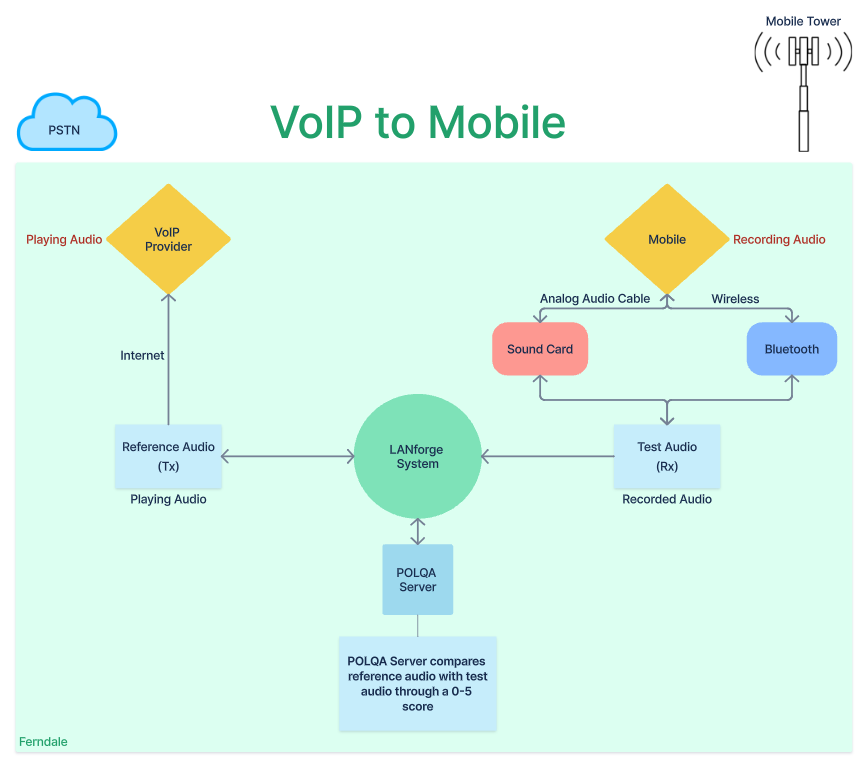

At Ferndale location, LANforge system makes 20 multiple single calls using VoIP-SIP towards connected mobile device. LANforge system plays a reference audio file over the VoIP-SIP call. The same call is being recorded by LANforge system from the mobile device using Bluetooth or audio cable. After the call completes, both the reference audio file and recorded audio file are evaluated by the installed POLQA server. The POLQA server scores the recording based on audio quality loss during the call.

  1. Requirements:
    1. LANforge system. (version 5.4.8)
    2. LANforge licenses.
    3. POLQA server with required licenses
    4. POLQA standard reference audio files.
    5. Bluetooth USB dongle.
    6. Analog sound card and audio cables. (If testing over analog audio cable)
    7. VoIP service provider. (Customer provided)
    8. Mobile device (Android or IOS) having Bluetooth and active SIM/eSIM card. (Customer provided)
    9. Mobile network like VoLTE, VoNR, etc. (Customer provided)
    10. Internet access. (Customer provided)
  2. Configurations:
    1. LANforge and POLQA licenses are installed.
    2. AQ configuration: Follow /home/lanforge/audio-bluetooth/README.txt
    3. Then reboot the system.
    4. On the LANforge system, open the GUI.
      Under VoIP/RTP tab, select Create. screenshot
      1. Cross Connect details to be filled are:
        1. Cross Connect Information:
          1. CX name: VoIP-Mobile
          2. Select Multi-Call checkbox.
          3. Select Save Call Records checkbox to save recordings for further analysis.
          4. Select Use Gateway checkbox.
          5. Min/Max Call Duration: File
          6. Number Of Calls: 20
          7. Min/Max Inter Call Gap: 5 sec
          8. Rest can remain defaults
        2. TX Endpoint A: Fill the TX Endpoint A with VoIP-SIP details.
          1. Resource: LANforge system Hostname
          2. Port: Management Port with Internet access.
          3. Auth User Name: VoIP-SIP User info
          4. Display Name: VoIP-SIP Name
          5. Deselect Rcv Call checkbox.
            (VoIP-SIP is going to make calls and not receive in this case.)
          6. Deselect Mobile checkbox.
            (VoIP-SIP does not need Mobile checkbox.)
          7. Tx file: /home/lanforge/media/AmEnglish_NB_m1s1_f2s2_8s.wav
          8. Destination: AUTO
          9. Phone: VoIP-SIP phone number
          10. Call Gateway: VoIP-SIP Call Gateway info
        3. RX Endpoint B: Fill the RX Endpoint B with mobile details.
          1. Resource: LANforge system Hostname
          2. Port: Management Port with Internet access.
          3. Auth User Name: AUTO
          4. Display Name: Mobile Name
          5. Mobile BT MAC: Mobile bluetooth mac address
          6. Select Rcv Call checkbox.
          7. Select Mobile checkbox.
          8. Select Record checkbox.
          9. Select Enable Scoring checkbox for POLQA.
          10. Audio Band: Narrow Band
          11. Select Bluetooth checkbox.
            (Deselect this option for analog sound card option.)
          12. Tx file: /home/lanforge/media/AmEnglish_NB_m1s1_f2s2_8s.wav
          13. Destination: AUTO
          14. Phone: Mobile number
          15. Record File: Recording folder path
          16. Scoring Server: POLQA Server Address
      2. Select Apply, OK
  3. Options to start the test:
    1. Under VoIP/RTP tab, select the test name and click the Start button to begin. screenshot
    2. Using Command Terminal and get the test results in .csv format.
      1. Open a command terminal as a user
      2. cd /home/lanforge/Documents
      3. git clone https://github.com/greearb/lanforge-scripts
      4. cd lanforge-scripts/py-scripts/
      5. git pull
      6. ./run_voip_cx.py --host localhost --cx_list VoIP-Mobile --csv_file /home/lanforge/report-data/my_test_reports.csv
      7. This command can be integrated for further automation.
  4. AQ Test Results:
    1. Option 01: Under VoIP/RTP Endp tab, current results will be shown in column/row structure once started. screenshot
    2. Option 02: Using live graphical reporting.
      1. Under VoIP/RTP tab, right click on the selected AQ test name, and select Audio Quality Reporting. screenshot
      2. Select the required configuration and Start the monitoring. screenshot
      3. Once started, we see Live view of graphical test monitoring which shows detailed reporting.
      4. Use Save HTML or Save PDF to get detailed report including .csv data when test is finished.
  5. Sample screenshots of Live AQ Reporting.
    1. Screenshot 01 screenshot
    2. Screenshot 02 screenshot
    3. Screenshot 03 screenshot
    4. Screenshot 04 screenshot
  6. Further analysis: If Save Call Records option is true, received audio file along with the reference audio file can be evaluated manually on POLQA server to get more advanced report. Sample Advanced Report
  7. If you need assistance, you can contact us at support@candelatech.com
