Corrupting EAPOL-Key 3/4 Handshake Message RSNE WPA-Key Information Elements

Goal: Manually override RSN-related information elements of 3 of 4-way EAPOL authentication handshake messages sent by a LANforge system in AP Mode for testing purposes.

In this test scenario a LANforge system acts as a WiFi access point configured to use WPA2 authentication. The rsne_override_eapol field in LANforge Custom WiFi Parameters provides means to corrupt or customize certain information elements (IEs) in the third of four messages comprising EAPOL authentication "handshake". These IEs contain information about RSN encryption, including Pre-Shared Key (PSK) information required by 802.11 protocol for authentication success. Thus, such IEs may be overriden for the purpose of testing behavior under faulty authentication. Listed below is an example test case, of which documentation may be found in the hostap repository.

  1. Initial Setup for WPA2-Authentication Testing.
    1. Set up a virtual AP for testing.
      In this test, it is named vap0000 on parent device wiphy0.

      For more information see Create VAP in Bridge Mode

    2. On a separate radio, create a station to authenticate with vap0000:
      In the Port Manager tab, select wiphy1 and click Create; select WiFi STA, then click Apply.
      In this test, the station is named wlan1 on parent device wiphy1.

      For more information see Generating Traffic for WLAN Testing

    3. Configure vap0000 and wlan1 to use WPA2-PSK encrypted authentication.

      For more information see WPA2-Authentication Test Scenario

    4. Configure vap0000 and wlan1 with SSID test-wpa2-psk and Keyphrase qwertyuiop.
    5. Create a Monitor Port on its own radio to sniff wireless packets.
      In this test, the monitor port is named moni3a.

      For more information see Using Wireshark to Sniff WiFi Monitors

  2. Control (No Change):

    1. Configure Custom WiFi in vap0000:
      Select vap0000 and click Modify.
      Navigate to the Custom WiFi tab.
      Ensure that no rsne_override_eapol parameter is set in User-Specified supplicant/hostapd configuration text.
      Click Apply then OK.
    2. Set the vAP down and back up to allow changes to take effect:
      In the Port Manager tab, select vap0000.
      Admin all selected interfaces DOWN (CTRL-PLUS).
      Admin all selected interfaces UP (CTRL-MINUS).
    3. Sniff packets to observe the authentication behavior:
      On the observation system in the Port Manager tab, select only moni3a:
      Click Sniff Packets.
    4. Reset the station to force re-authentication:
      In the Port Manager tab, select only wlan1.
      Click Reset Port.
    5. Observe the results, which should be similar to the following:
      - Packets are not malformed.
      - The station wlan1 succeeds in authenticating with vap0000.
      - RSN Information Element is found in EAPOL-Key Message 3 of 4 sent by vap0000 with WPA-Key-Data field.

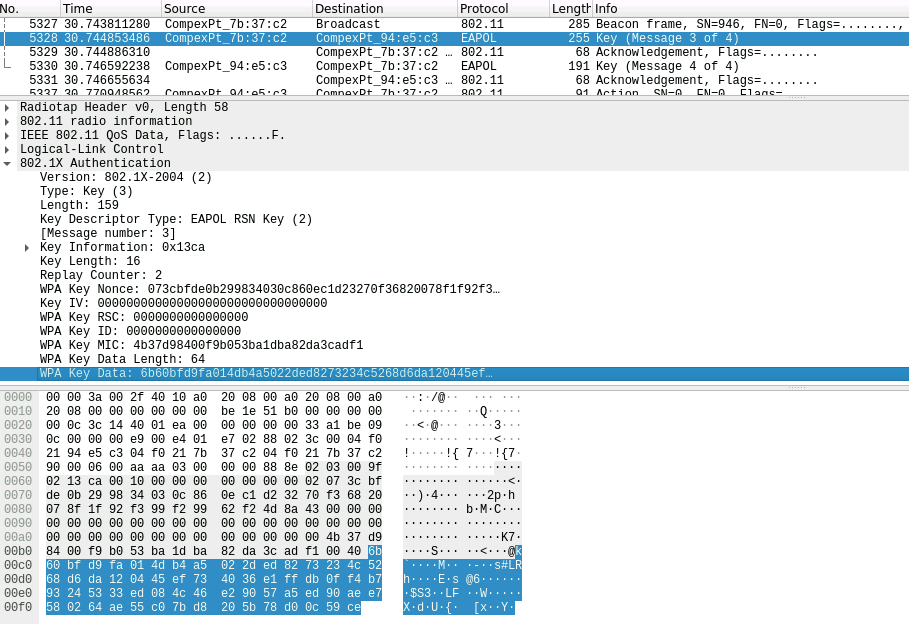

    6. Example results: screenshot
  3. RSNE Mismatch in EAPOL-Key Message 3/4:
    1. Configure Custom WiFi in vap0000:
      Select vap0000 and click Modify.
      Navigate to the Custom WiFi tab.
      In the User-Specified supplicant/hostapd configuration text field, write:
      rsne_override_eapol=30140100000fac040100000fac040100000fac020c80.
      Click Apply then OK.
    2. Reset ports and sniff packets:
      Repeat steps B through D of Step 2.
    3. Observe the results, which should be similar to the following:
      - The station wlan1 fails to authenticate with vap0000.
      - The WPA-Key-Data field EAPOL-Key Message 3 of 4 sent by vap0000 is changed.
      - The frame following EAPOL-Key Message 3 of 4 sent by vap0000 has type DEAUTH.

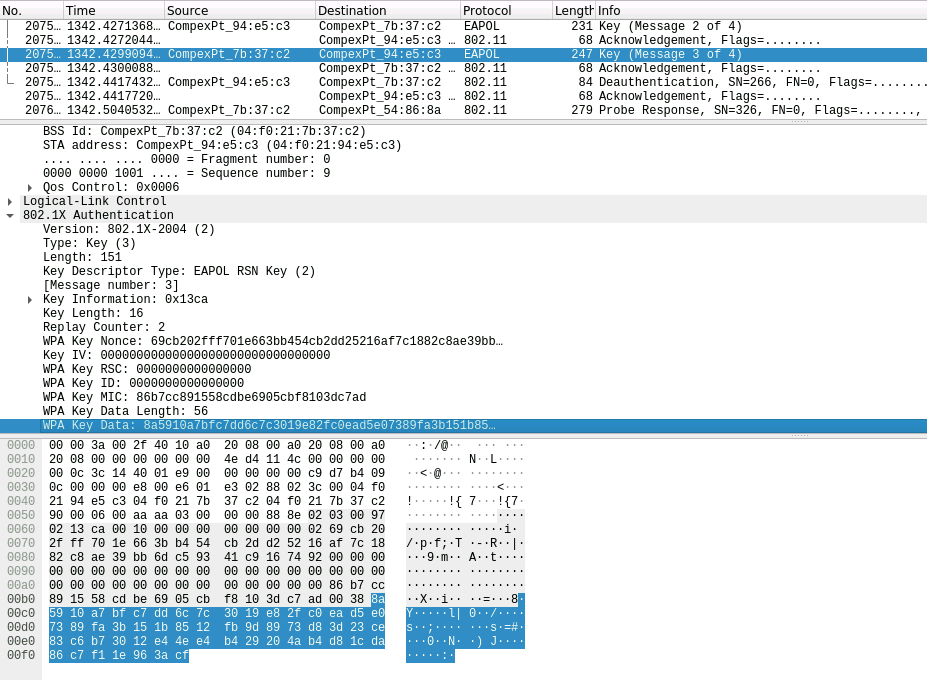

    4. Example results: screenshot
