Generating Traffic to a Web Server

1. Go to the Port Manager
2. Modify the port connected to the web server. Set a valid network IP address and Gateway IP.
3. Verify the port configuration

For more information see LANforge User's Guide: Ports (Interfaces)

1. Go to the Layer 4-7 tab
2. Create a Layer 4-7 Endpoint:
   1. Enter a name and select the port configured in the previous step
   2. URLs per 10m should be set to around 1,200,000 which is 2,000 URLs/second
   3. Leave the SSL Cert alone as we are not using it in this example
   4. UL/DL should be set to Download
   5. URL should be set to the web server's IP address and file that you wish to download. In this example, index.html is a small test file.
   6. File is the designated location that the downloaded file will be stored. In this example, we use /dev/null which will essentially throw the file away so that it does not slow down the LANforge system with writing files.
   7. Select the 'Allow-Reuse' checkbox to maximize the number of URL requests LANforge can make per connection
   8. Click Apply or OK to create the Layer 4-7 endpoint
3. Create 9 more Layer 4-7 endpoints by opening the previously created endpoint and clicking Batch-Create
   1. Set the Quantity to 9, Number of Digits to 2, and Port Increment A to 0. Then click Apply.
   2. Each of the 10 Layer 4-7 Endpoints will attempt to generate 2000 URLs/second, effectively generating 20,000 URLs/second

For more information see LANforge User's Guide: Layer 4-7 Endpoints

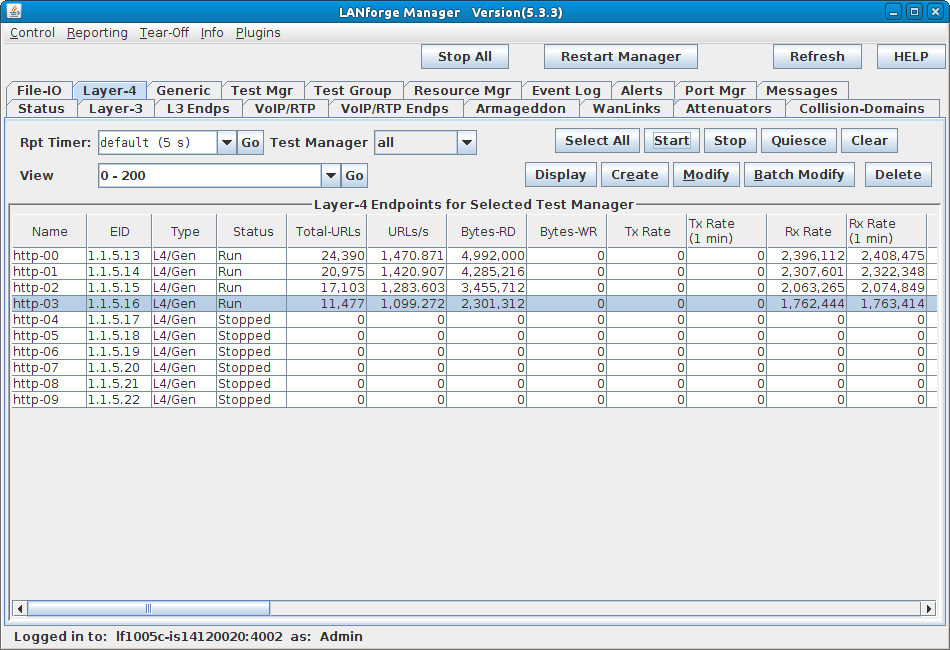

1. On the Layer 4-7 tab, select one Layer 4-7 endpoint, click Start, then repeat for all 10 Layer 4-7 endpoints:
   1. As each endpoint is started, the rate of URLs/second will start to converge on a rate that the web server is capable of providing. Finding the final web server performance rate is a matter of adding up the rates of all running Layer 4-7 endpoints.
   2. Several Layer 4-7 endpoints (10 in this case) are used so each endpoint can make an independently large number of URL requests without having to wait for too many replies. Each URL request is waiting for a reply from the web server, so if only one Layer 4-7 endpoint was making requests, it would spend too much time waiting for replies instead of generating more requests. Spreading the URL requests over several endpoints allows each LANforge connection to the web server to maximize its rate of URL requests.
2. Layer 4-7 Endpoint Results:
   1. After starting all 10 endpoints, and letting them run for at least 1 minute, the overall URLs/second rate converges to around 17,000 URLs/second.

For more information see LANforge User's Guide: Layer 4-7 Endpoints
