Cross Connects and Endpoints Tutorial

Most examples in our cookbooks assume a dual-ended connection, also known as a cross-connect or abbreviated as CX.

Building Endpoints and Connections

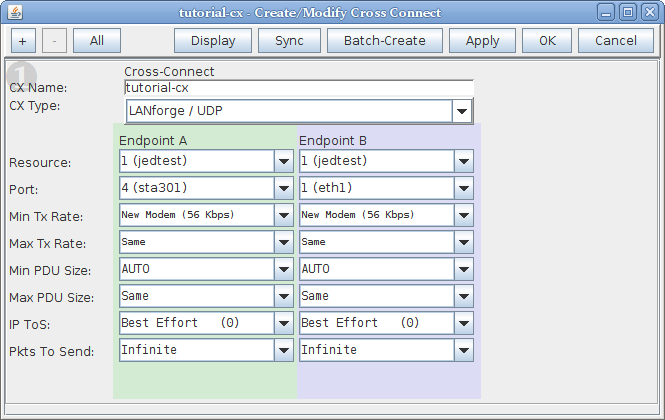

Let's follow the creation of a Connection:

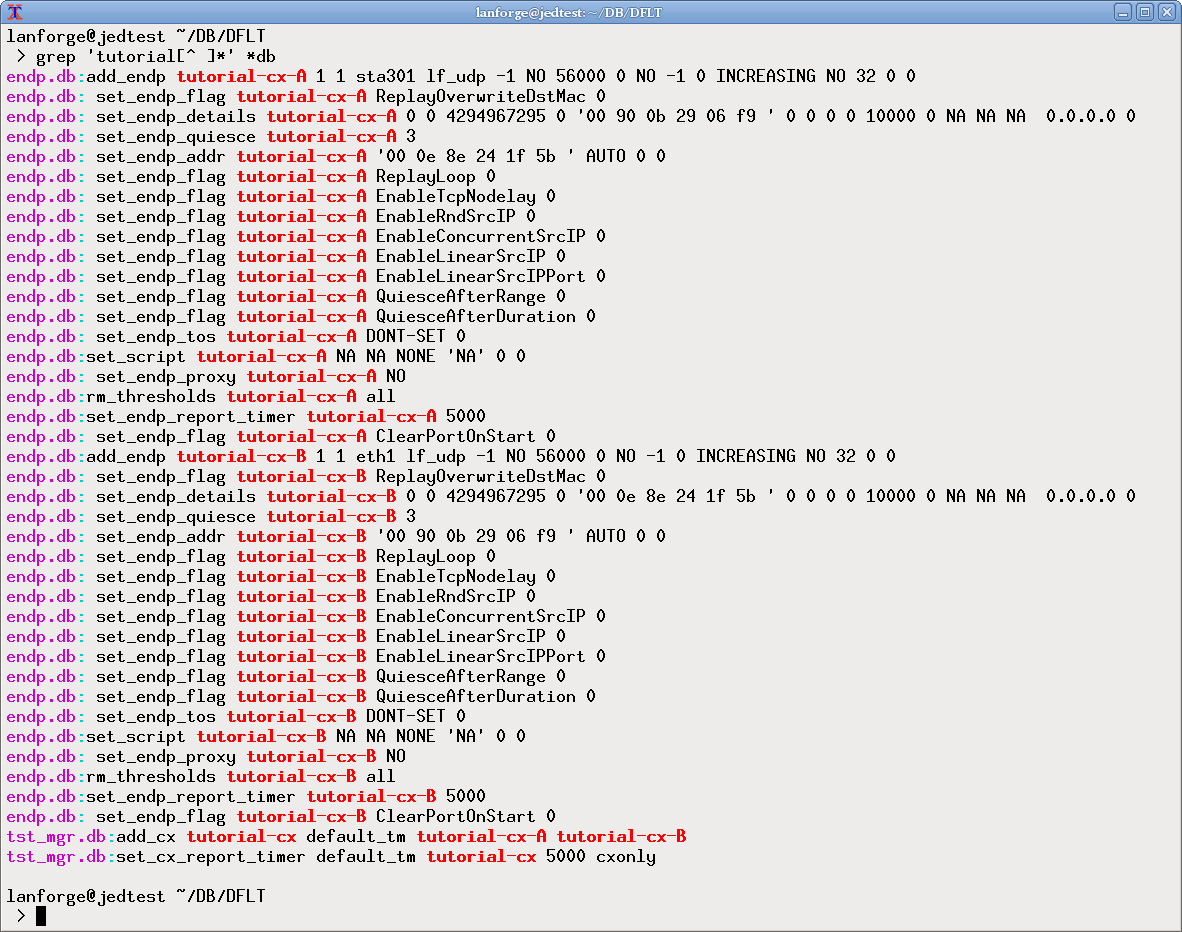

Using a terminal on the LANforge machine, we look at the /home/lanforge/DB/DFLT/endps.db file and inspect the commands issued that create that connection:

That's a lot of commands. We will point out what is particularly necessary when using our Perl scripts.

Endpoints and Connections Naming Convention

The connection we created above is named tutorial-cx. Two endpoints also have names, tutorial-cx-A and tutorial-cx-B. The A-side of a connection is always managed. A B-side endpoint may be unmanaged. When you write CLI scripts that create connections, name your endpoints using a similar convention.

Endpoints are Created First

We can use the lf_firemod.pl script to create endpoints and a cross connect in this order:

$ ./lf_firemod.pl --action create_endp --endp_name tutorial2-cx-A \
      --speed 256000 --endp_type lf_tcp --port_name sta301

$ ./lf_firemod.pl --action create_endp --endp_name tutorial2-cx-B \
      --speed 256000 --endp_type lf_tcp --port_name eth1

$ ./lf_firemod.pl --action create_cx --cx_name tutorial2-cx \
      --cx_endps tutorial2-cx-A,tutorial2-cx-B

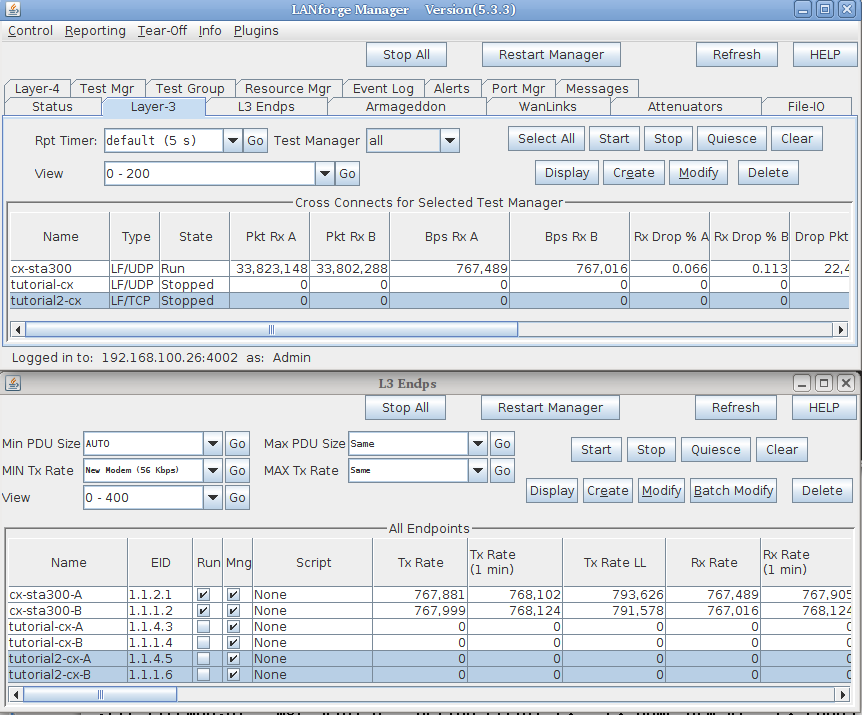

We can see the results of those script commands in our Layer-3 and L3 Endps tabs:

Starting and Stopping: Connections have State

When a connection is first created, it is STOPPED. When you start it, it becomes RUNNING. When you set a connection to STOPPED, both endpoints immediately stop sending and recieving. That can have a consequence of leaving unacknowledged packets in flight. The safest way is to QUIECE the connection, which first stops the endpoints transmitting, waits a short time, and then stops the endpoints from recieving.

When there is just one Endpoint

Normally, if you see one endpoint, it should only be a multicast endpoint. A single endpoint can be seen in these situations:

• You have paused between creating the first and second endpoint for a connection. Continue working.
• Created by a script mistakenly, through a typo or other misconfiguration
• Left over from an interrupted script that deleted the cross-connect and one of two endpoints

A single endpoint is not an illegal entity, but lonely endpoints can add confusion. If you find endpoints that do not match any existing connections, we suggest deleting them.

A Cross-Connect can be one-sided, that is, have one unmanaged endpoint. The A side endpoint is a LANforge managed port transmitting to another device that's not a LANforge machine. Some connection types create this style of endpoint pairs, like File-endpoints and Layer 4-7 connections.

Multicast

Multicast endpoints are created differently both in the GUI and in the CLI scripting environment. This tutorial does not focus on multicast, but see the section Creating Endpoints section of Creating Connections with FIREMod Script and the chapter on WiFi Multicast Download.
