Automated scanning of SSID, BSSID, and Signal of available wireless APs

1. --sta_name nameOfStation

   Specifies the name of the station to be created, if this option is used, the name will default to sta0000.

2. --ssid nameOfNetwork

   Specifies the name of the network to connect to.
   This value must be used, however, the SSID does not have to exist and a fake name can be used.

3. --security {WEP, WPA, WPA2, WPA3, Open}

   Specifies the security type of the network to connect to.
   This value must be used, however, if a fake SSID is used the type should be open.

1. As an example, we can run the script using:

   ./sta_scan_test.py --sta_name sta0000 --ssid fake_ssid --security open --radio wiphy0

2. This will produce output that looks like this:

   BSS                     Signal  SSID
   08:36:c9:e3:d4:da       -32.0   Logan-Test-Net
   10:56:11:0c:04:02       -80.0   :)
   22:56:11:0c:04:02       -79.0   xfinitywifi
   32:56:11:0c:04:02       -80.0   NA

   This script produces limited output, for more detail we can look at the webpage hosted by LANforge.

1. First we will create the station (Make sure to click on a radio in the Port Mgr tab first):

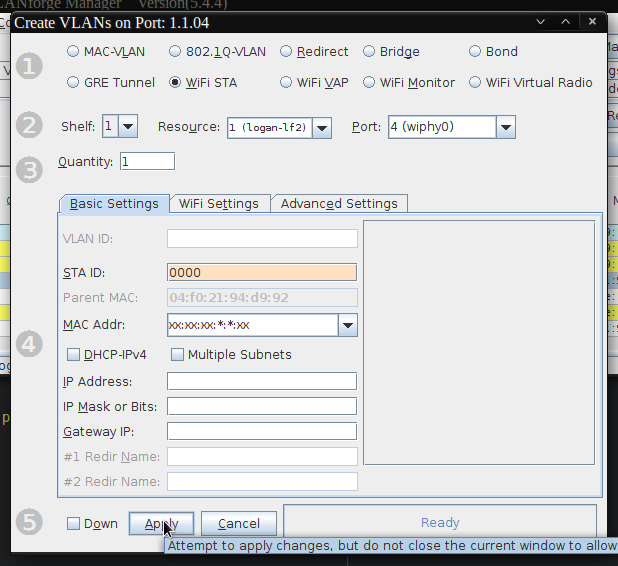

2. Next we will create the station, the default values can be used or a specific number for the station can be given:
3. After creating the station, we will give the an SSID to connect to. (This doesn't have to be a real AP):
4. Clicking on Display Scan at the bottom of the station settings window will bring us to the Scan window:
5. Finally we'll be able to start the scan and see the results. Clicking on Scan and waiting a few seconds will show all of the APs availble to the station:

{"handler":"candela.lanforge.HttpStationScan$FixedJsonResponder","uri":"
scanresults/:shelf_id/:resource_id/:port_id","candela.lanforge.HttpStationScan":
{"duration":"1"},"scan-results":[{"1.1.4.08:36:c9:e3:d4:da":{"age":"2238","auth":"WPA2",
"beacon":"200","bss":"08:36:c9:e3:d4:da","channel":"44","entity id":"1.1.4",
"frequency":"5220","info":"3x3 MCS 0-9 AC","signal":"-32.0","ssid":"Logan-Test-Net"}}]}

1. First, we'll need to send a JSON post using realm. Use this cookbook as reference for getting started with realm. Our JSON will look something like this:

   data = {
   "shelf": 1,
   "resource": 1,
   "port": self.sta_list
   }

2. We can then use json_post to send the request. We'll need to wait about 15 seconds to give the scan time to happen

   self.json_post("/cli-json/scan_wifi", data)
   time.sleep(15)

3.
   Next, we'll create a variable with the results from the scan using

   scan_results = self.json_get("scanresults/1/1/%s" % ','.join(self.sta_list))

4. Finally, we'll create a loop to iterate through the JSON response and print some nicely formatted output

   print("{0:<23}".format("BSS"), "{0:<7}".format("Signal"), "{0:<5}".format("SSID"))
   for result in scan_results['scan-results']:
       for name, info in result.items():
           print("%s\t%s\t%s" % (info['bss'], info['signal'], info['ssid']))

1. Our final function will look like this:

   def start(self):
       self.station_profile.admin_up()
       print(self.sta_list)
       print("Sleeping 15s while waiting for scan")
       data = {
           "shelf": 1,
           "resource": 1,
           "port": self.sta_list
       }
       self.json_post("/cli-json/scan_wifi", data)
       time.sleep(15)
       scan_results = self.json_get("scanresults/1/1/%s" % ','.join(self.sta_list))

       print("{0:<23}".format("BSS"), "{0:<7}".format("Signal"), "{0:<5}".format("SSID"))
       for result in scan_results['scan-results']:
           for name, info in result.items():
               print("%s\t%s\t%s" % (info['bss'], info['signal'], info['ssid']))

2. Our formatted output should look like this:

   BSS                     Signal  SSID
   00:0e:8e:52:4e:82       -33.0   test-net
   08:36:c9:e3:d4:db       -31.0   Logan-Test-Net
   08:36:c9:e3:d4:dc       -27.0   Logan-Test-Net
